CHIPJUICE

Recovering the Netlist & GDSII of any chip

ChipJuice is the ultimate tool for easily Reverse Engineering ICs.

By detecting and processing the whole interconnection and Standard cell library of the digital core, ChipJuice recovers any chip’s internal in the form of their Netlists and their GDSII.

ChipJuice is handling a physical netlist where nodes are not only listed but are also localized onto the chip. This allows for quick signal tracing and annotation.

To do so, ChipJuice only needs the electronic images of the chip’s digital core.

ChipJuice combines a lot of very nice features and assets that make it usable by any chip fan:

  • User Friendly: ChipJuice has been designed by Software Experts and tested by demanding Hardware Security Evaluators
  • Powerful & Efficient: The processing algorithms have been finely-tailored making it usable on any standard developer’s computer
  • Versatile: ChipJuice can reverse any type of chip, whatever its:
    • Size
    • Tech node
    • Material (Aluminium, Copper)
    • Number of layers
    • Architecture: Microcontroller, Microprocessor, FPGA, SoC,…

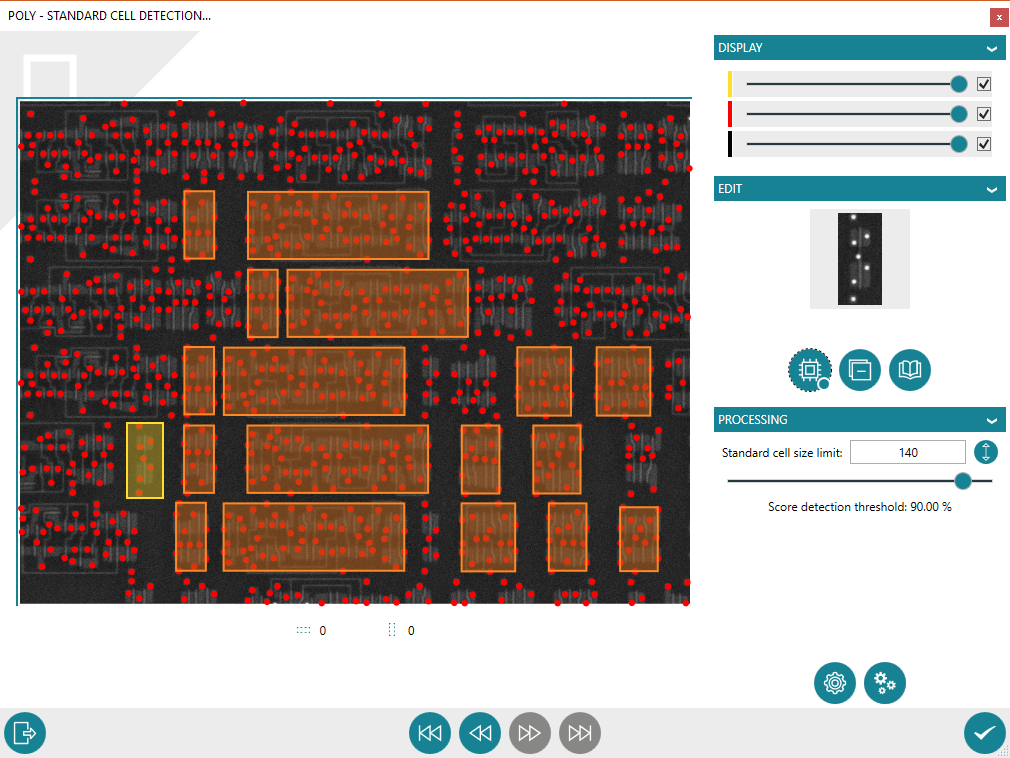

  • Smart: ChipJuice embeds a feature called “Automated Standard Cell Research” thanks to which:
    • Once a standard cell has been identified, all its occurrences can be automatically detected
    • Every new identified Standard cell is added in a catalog
    • The catalog can be advantageously reused for the study of other chips

 CHIPJUICE STRENGHTS

WORKABLE FOR ANY CHIP

  • ONE UNIQUE TOOL FOR ALL CHIPS

HIGH-PERFORMANCE ALGORITHMS

  • FAST PROCESSING

FOR IN-DEPTH EXPLORATION

  • DIGITAL CORE COMPLETE RECOVERY

USER FRIENDLY

  • ENJOYABLE & EASY TO PLAY

EASY TO PLAY VS HIGH PERFORMANCE

Explore what stands inside chips

ChipJuice allows Reverse Engineering of ICs that is very useful for:



  • Hardware Architectures Analyses
  • Security Assessments
  • Competitive intelligence
  • Backdoor research – Supply Chain Evaluation
  • Digital IP infringement investigation
  • Pirate devices Analysis
  • Obsolete devices Recovery
  • Education on semiconductors

FOR WHO?

If you need to explore one or several Integrated Circuits, ChipJuice is made for you.

This powerful tool can be useful for:

  • Evaluation laboratories
  • Governmental Organizations
  • Chip Makers
  • IC Buyers & Integrators
  • Researchers
